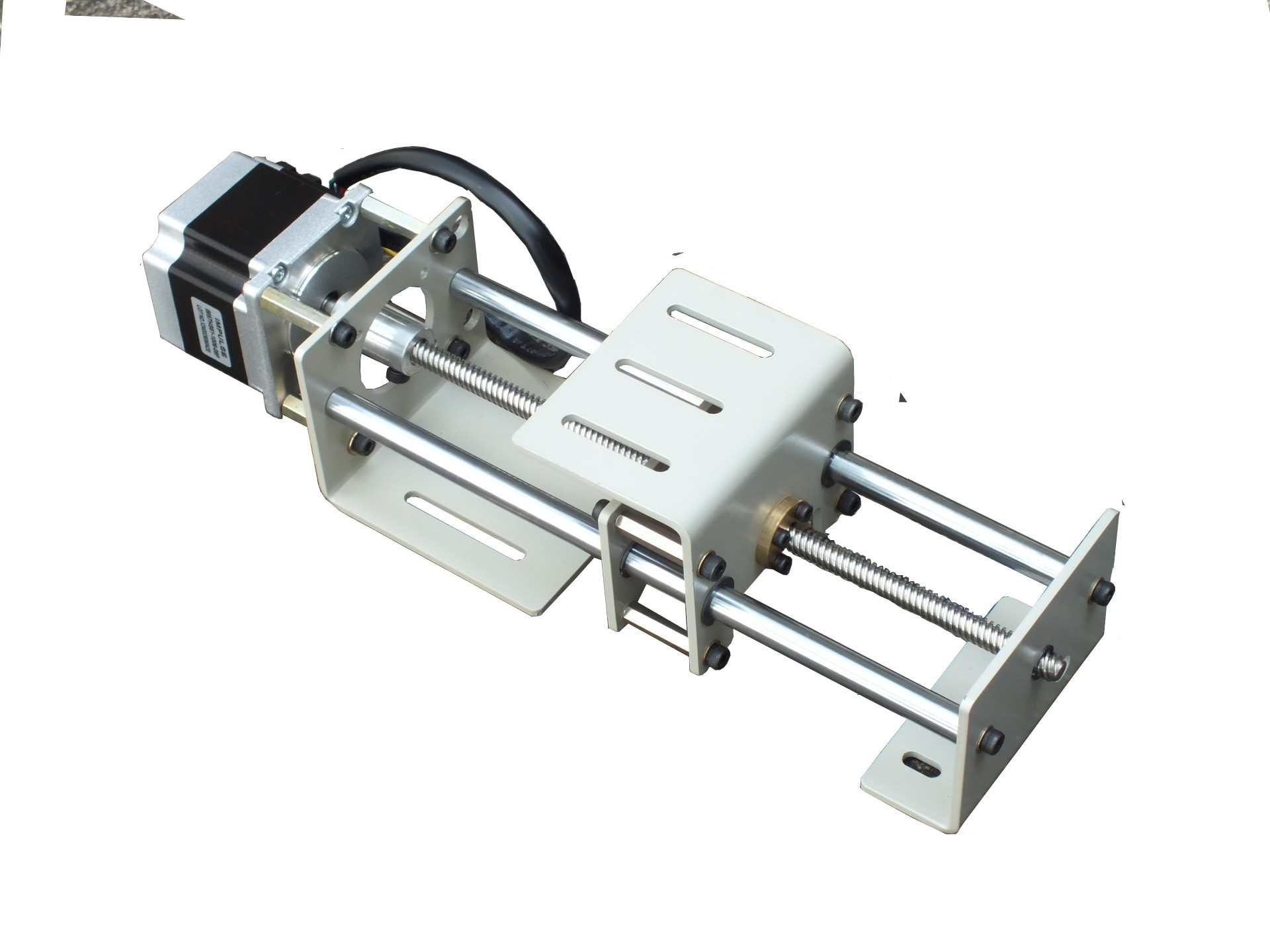

Linear Actuator With Nema 23 10 Kg-Cm Stepper Motor

Specifications Rated Voltage (V) 2.3 Current/ phase (A) 2.8 Resistance/ phase (ohms) 0.83 Inductance/ phase (mH) 2.2 Holding Torque (kg-cm) 10 No. of Leads 4 Rotor Inertia 275 Weight (kg) 0.65 Detent Torque (kg-cm) 0.36 Length (mm) 51 Step Angle 1.8° Step Angle Accuracy ±5% (full step, no load) Resistance Accuracy ±10% Inductance Accuracy ±20% Frame Size (mm) 57×57 Shaft Length (mm) 20.6 Shaft Diameter (mm) 6.35 Length (mm) 51 Weight (kg) 0.65 stepper motor is used for precise positioning with a motor, such as hard disk drives, robotics, antennas, telescopes, and some toys. Stepper motors cannot run at high speeds, but have a high holding torque.
