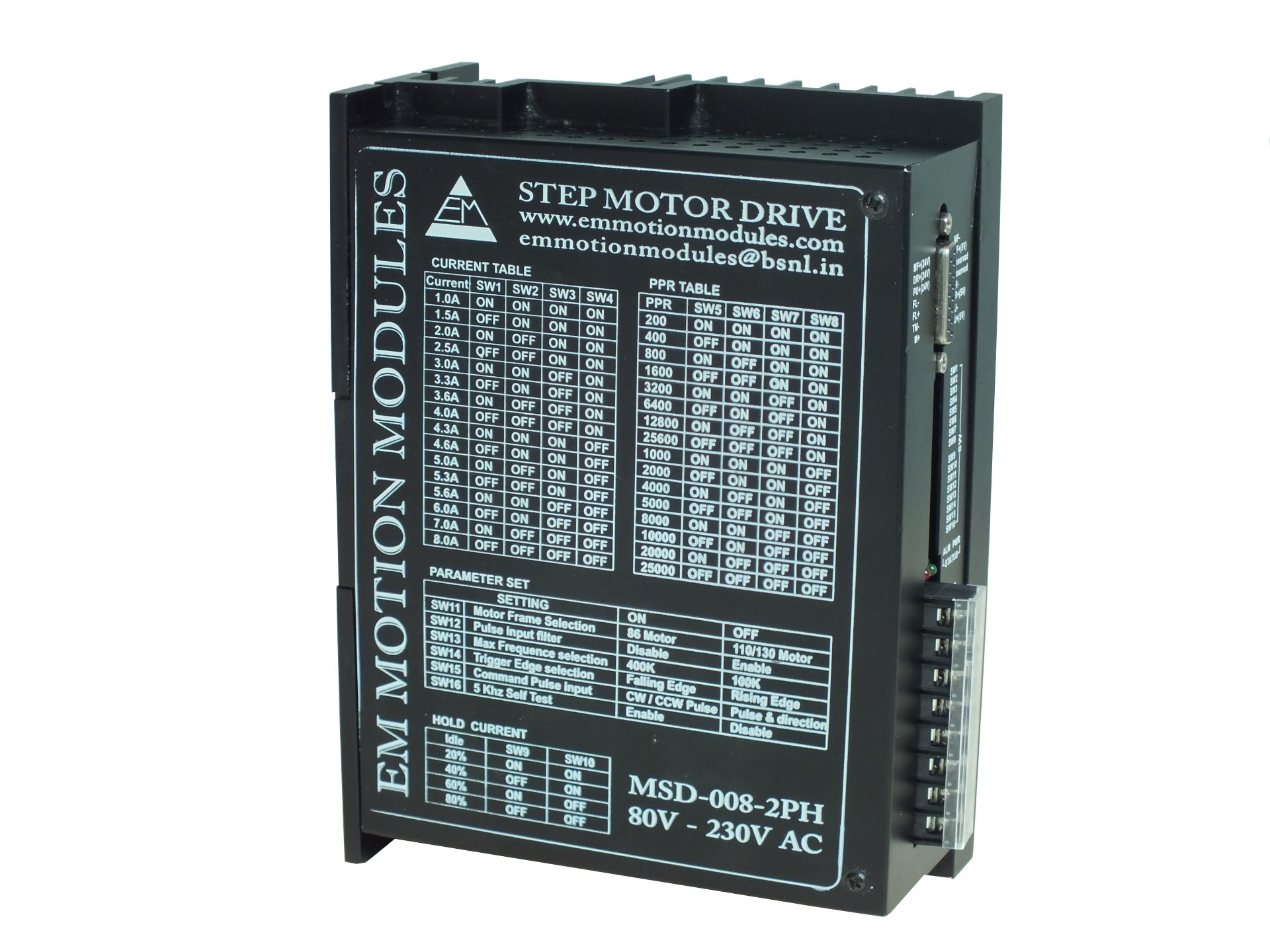

EM MSD-008 -2PH Stepper Motor Driver

Description

MICROSTEPPING BIPOLAR STEPPER MOTOR DRIVERS
Designed for precision motion control and robotics, our Microstepping Bipolar Stepper Motor Drivers offer unparalleled performance with advanced features for enhanced reliability and ease of use. These compact and rugged modules cater to a wide range of applications in industrial and robotics automation.

Key Features

1. Compact and Durable Design: Built to withstand demanding environments with a user-friendly interface.
2. Wide Supply Voltage Compatibility: Operates seamlessly across a broad voltage range (20V to 48V).
3. Optical Signal Isolation: Ensures reliable communication and protects control circuits from electrical noise.
4. High Control Signal Voltage Range: Accommodates up to 35V for robust signal handling.
5. Automatic Standstill Current Reduction: Minimizes energy consumption and motor heat when idle.
6. Precision Drive Current Setting: Offers 7-step adjustments for optimal motor performance.
7. Comprehensive Protection:
   • Overvoltage and short-circuit protection.
   • Overcurrent protection to ensure durability.
8. User-Defined Drive Configuration: Supports up to 25,600 steps for precise motion control.
9. Easy Installation: Detachable terminal connectors and panel-friendly mounting.

Specifications

Electrical

• Operating Voltage: 20V (Min) – 48V (Max)
• Operating Current: 4.2A (Max)
• Operating Power: 210W (Max)
• Control Signal Voltage: 3V (Min) – 35V (Max)
• Control Signal Isolation: Up to 800V peak-to-peak

Thermal

• Drive Operating Temperature: 0°C to 70°C
• Internal Temperature: Up to 50°C
• Operating Humidity: Up to 40%

Mechanical

• Dimensions:
  • Length: 116mm
  • Height: 101.5mm
  • Depth: 26.5mm
• Weight: 208g
• Mounting Hole Pitch: 110mm (5mm diameter)

Applications

Ideal for precision motion control in robotics, industrial automation, CNC machines, and more.
